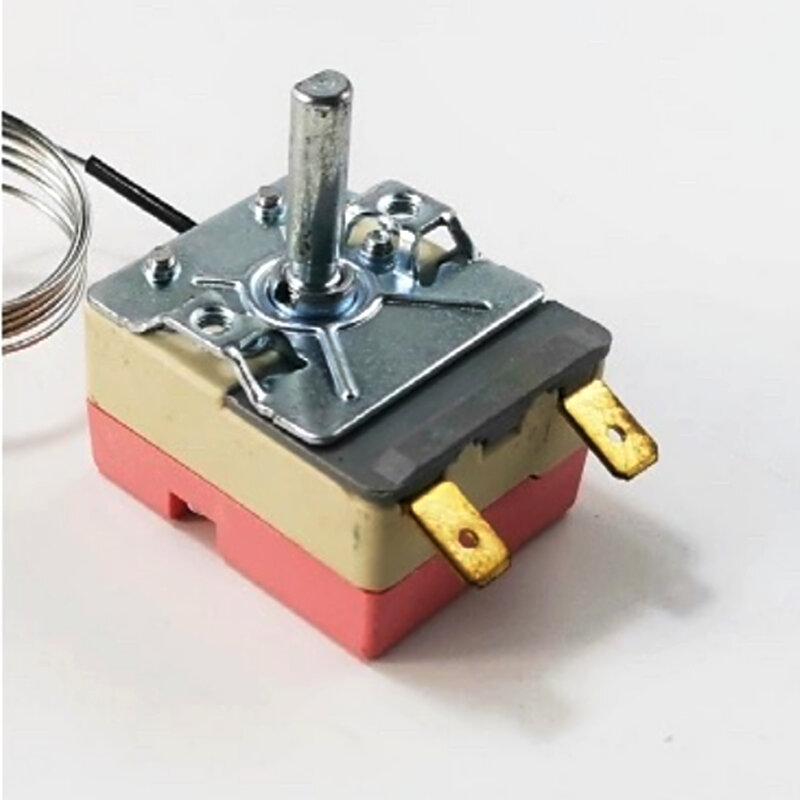

Temperature controller temperature control switch thermostat knob Adjustable thermostat AC 250V 16A 50-300 C
Three feet is a normally closed and a normally open function
Specifications:
Material: metal, plastics, ceramics,
Voltage: AC 250V
Current: 16A
Temperature: 50 ° C-400 ° C
Product Life:> 100,000 times
Electric strength: AC2000V / 1min
Normal insulation resistance: ≥100MΩ
Contact resistance: ≤50mΩ
For insulation resistance: ≥10MΩ
Temperature response rate: ≤1.0 C / min
Minimum Current: 200mA
50 ° C-400 ° C
Rod Length:35mm
Rod Diameter:6mm
Cable Length:70cm
Principle of performance:
When the object to be controlled temperature changes
So that the working fluid thermostat temperature to produce
the corresponding portion of the thermal expansion and contraction
Physical phenomena (working fluid volume change)
Temperature sensing bellows portion communicating together produce expansion or contraction.
Through leverage, driven by the switch-off operation, to achieve the purpose of constant temperature.
Suitable for:
Mainly used in household appliances (shower, drum-type washing machines, heaters),
Electric equipment (stainless steel automatic water boilers, electric frying pans, food machinery, medical equipment),
The refrigeration industry (kitchen freezer, fresh cabinet, refrigerator,
Ice machine, fish pond, cold drink machine, heating machine) with temperature control.
Package contains:
1 set of mechanical thermostat
